Product Code: TR041

Tie-Rod

Tie-rod balcony connectors diagonally transfer loads into walls, reducing slab edge force. Compatible with MMC including timber or precast.

Please Configure Your Options:

Please select the number of apartments your scheme has
Balcony Quantity:
Info Icon

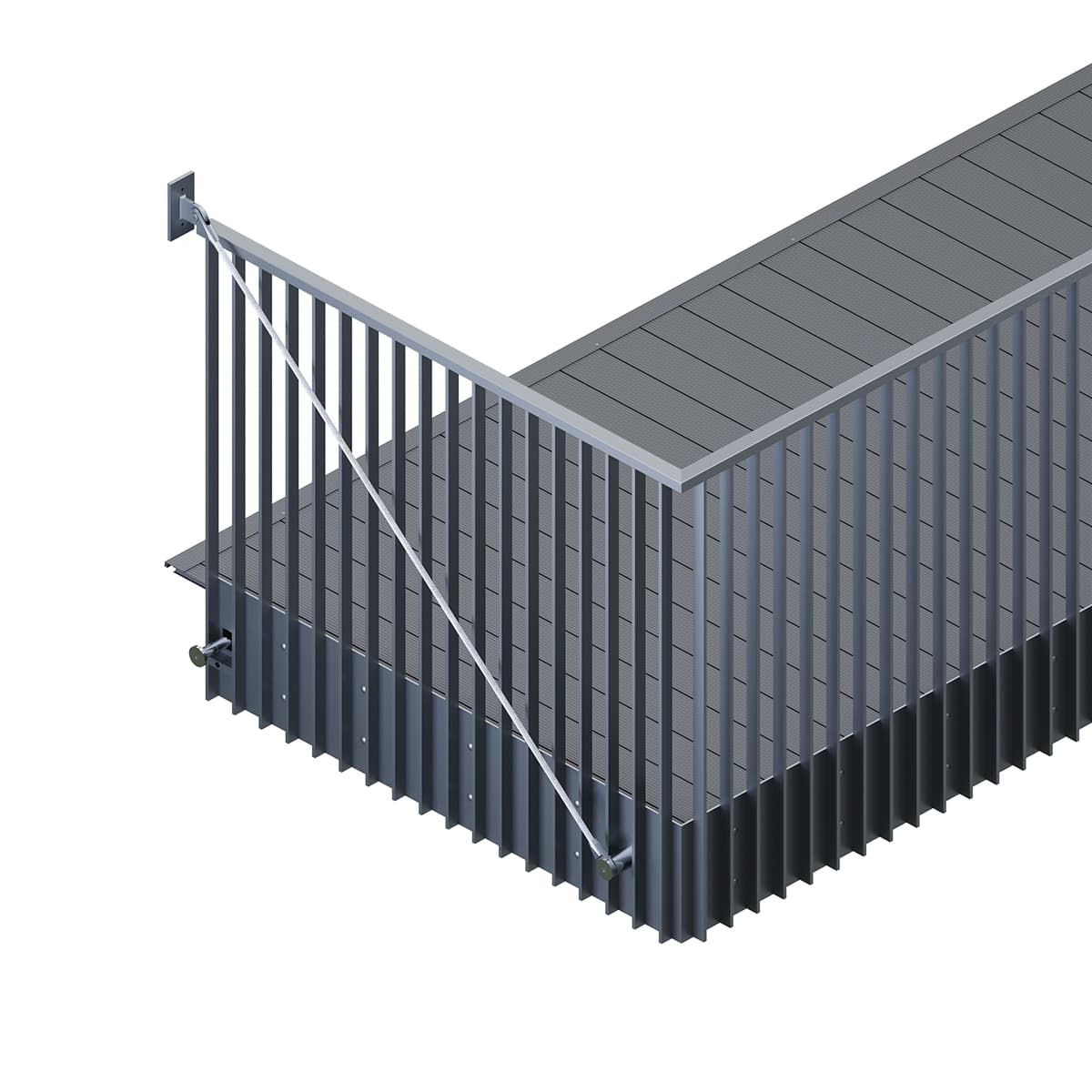

The tie rod connector triangulates forces by transferring loads diagonally from the balcony back to the building. This reduces moment forces at the slab edge, minimising façade penetrations and lowering embodied carbon. It is particularly effective in Modern Methods of Construction (MMC), such as precast or timber wall panels. Projects like Transport House in Dagenham and Vienna House in Vancouver have successfully used this system to achieve structural efficiency with minimal visual impact.
