Clip-On Connection

Clip-On™

    Clip-On™ anchors were custom designed to connect Sapphire balconies to precast façades.
    View Detail

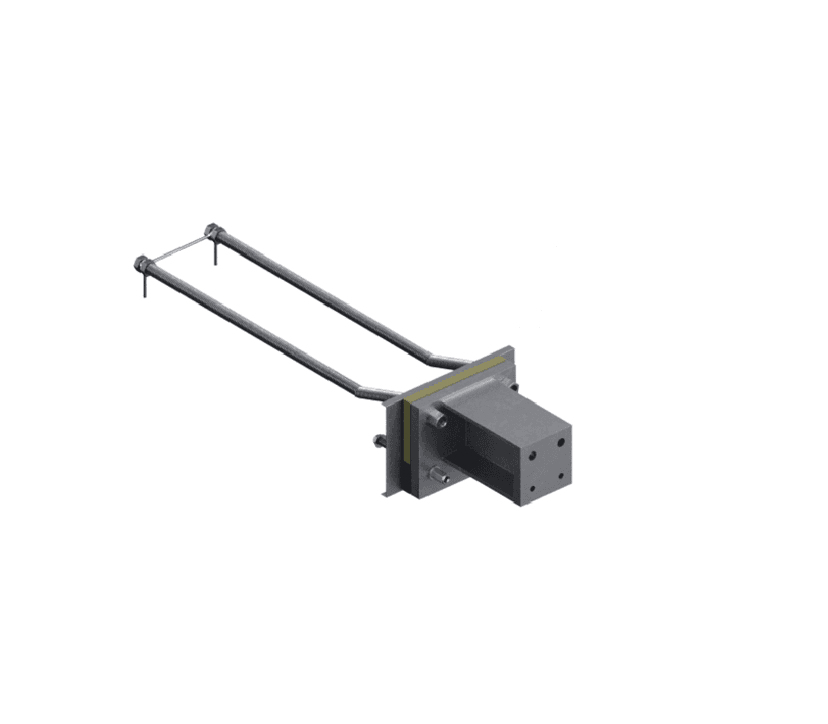

    Cast-In G30 Anchor

      Cast-in G30 anchor system uses M30 stainless bars for high rigidity. Suits lightweight aluminium balconies on precast concrete walls....
      View Detail

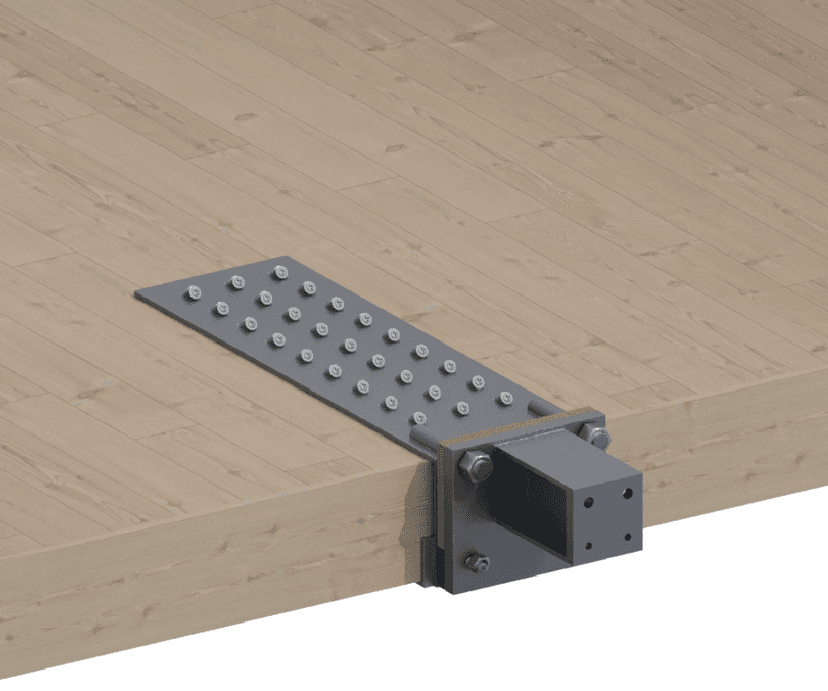

      Top Fix Timber Connection

        Top-fixed timber balcony connector supports CLT buildings with minimal penetration. Lightweight solution for mass timber architecture.
        View Detail

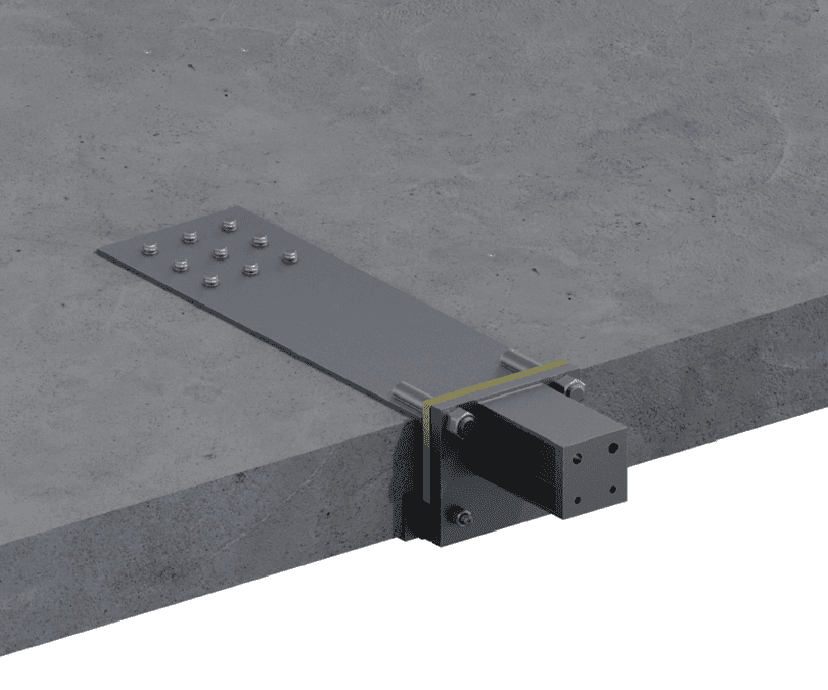

        Top Fix Concrete Connection

          Top-fixed concrete connections are used in precast or converted slabs. Bracket-based system ensures safe balcony installation on RC frames.
          View Detail

          Cast-In G60 Anchor (Ace)

            Cast-in G60 ACE anchor offers high fire, thermal and structural performance with M30 rigidity and Class A non-combustible thermal break.
            View Detail

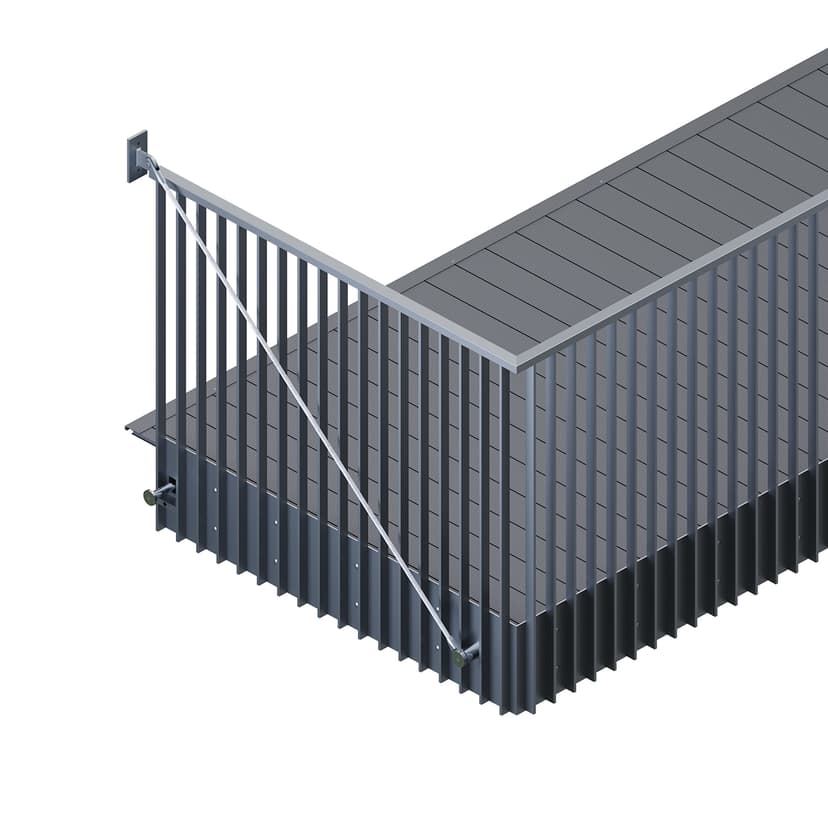

            Tie-Rod Balcony Connection

            Tie-Rod

              Tie-rod balcony connectors diagonally transfer loads into walls, reducing slab edge force. Compatible with MMC including timber or precast.
              View Detail

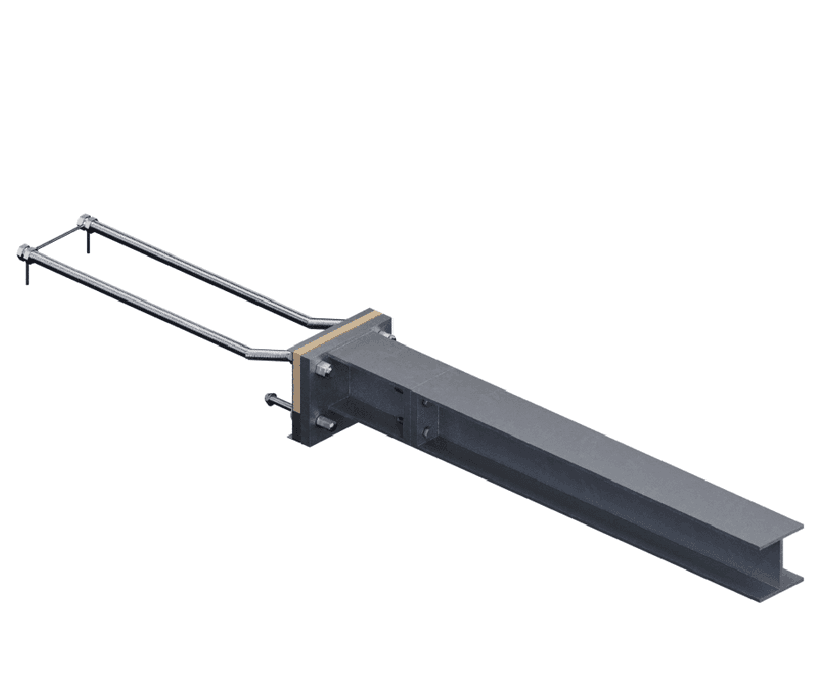

              Two Piece (Stub and Arm)

                Two-piece stub and arm system enables later-stage arm attachment. Maintains scaffold compatibility and fast on-site installation.
                View Detail

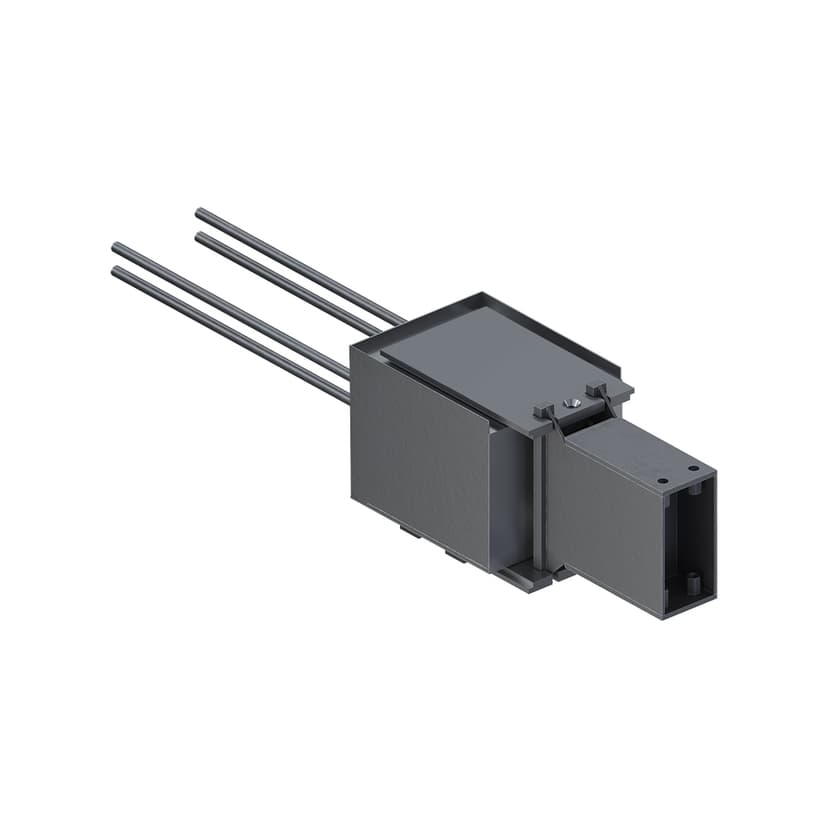

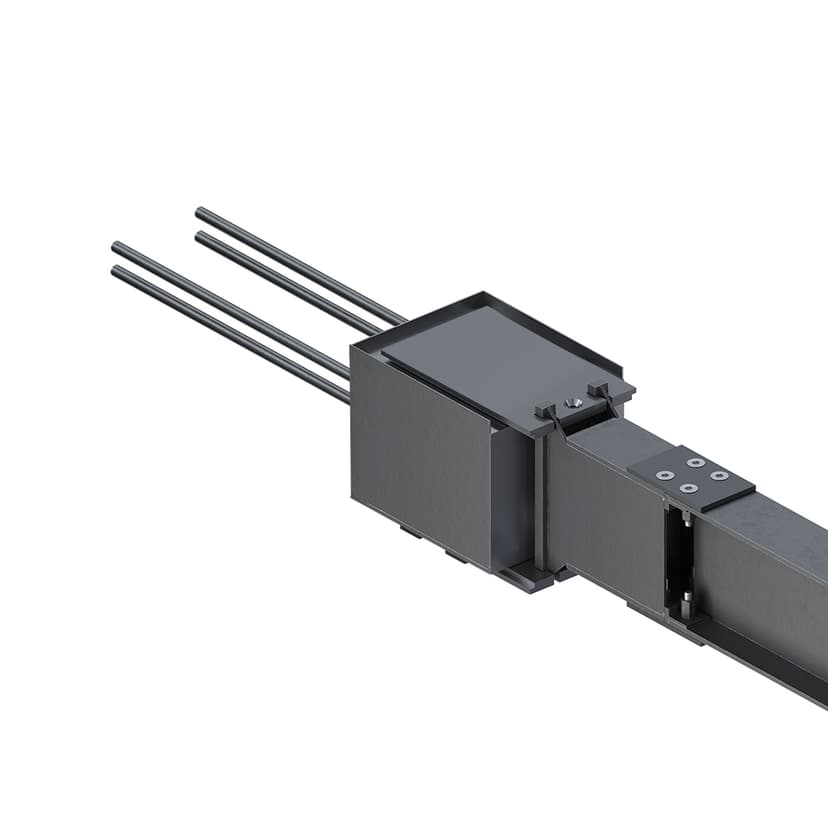

                Unitised-Anchor

                Unitised Anchor

                  Unitised anchor supports curtain wall projects with a 3-part connector system. Ensures thermal continuity and façade load transfer.
                  View Detail
                  CPD-AdNews Overlay

                  Book a CPD TEST

                  Our accredited CPD presentations share the insights, research, and practical knowledge that shape safer, more sustainable, and more efficient balcony design.

                  Book a CPD TEST

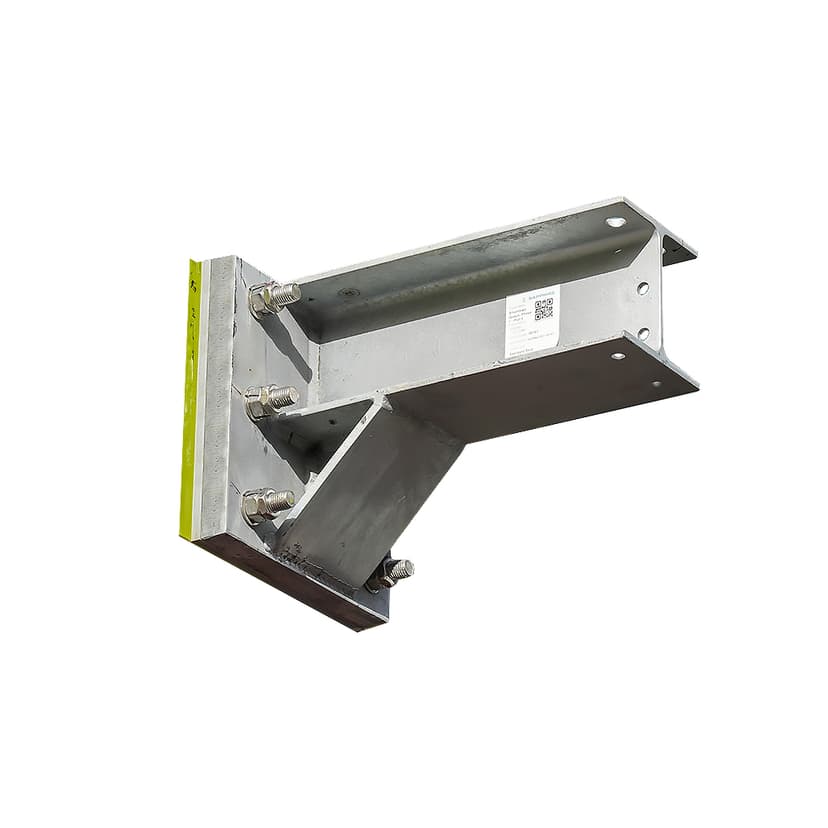

                  DELTABEAM Connection

                  DELTABEAM® Frame Connection

                    DELTABEAM® Frame balcony connectors work with hybrid steel-concrete structures. Reduces penetrations and handles slab-edge loads efficiently.
                    View Detail
